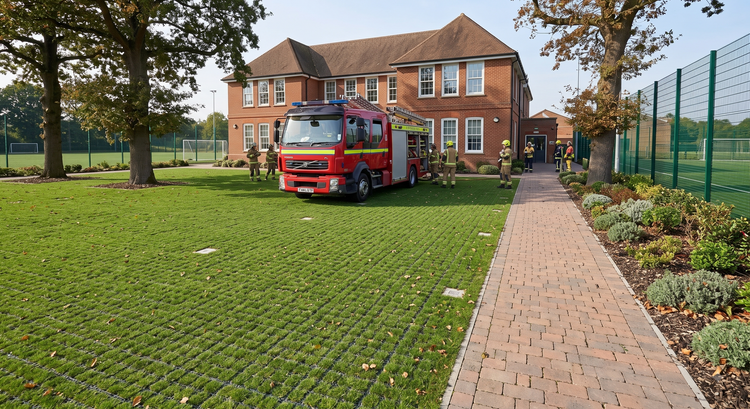

Emergency & Fire Access on Grass
A fire route that works on the day, and disappears the rest of the time
Emergency access does not have to look like a road. IBRAN grids carry appliance loads below a grass surface, so a compliant route can sit within lawn, landscaping or parking without reading as hard standing.
Why reinforcement matters here
A fire appliance route is a surface that must perform perfectly on the one day it is used, having been driven over almost never in between. That is an awkward brief. Build it in tarmac and you have a road across the landscape that serves no daily purpose. Leave it as grass and it may not carry the appliance when it matters.
A cellular grid resolves it. The grid and the confined rootzone carry the load, spreading it across the whole surface instead of concentrating it under each wheel, while grass grows up through and over the cell tops. The route stays green, mowable and indistinguishable from the surrounding landscape, and it is there at full strength the moment an appliance turns onto it.
It also stays available. An unreinforced grass route is only usable in dry conditions, and fires do not wait for August.
Where this works well
- Fire appliance access routes and turning heads
- Hard standing for pumping and high reach appliances
- Secondary and emergency-only site access
- Hospitals, care homes and schools
- Hotels, venues and visitor attractions
- Housing developments and apartment schemes
- Heritage sites where a road is not acceptable
- Rural properties beyond the 45m access distance
What the route has to achieve
Access for the fire and rescue service is governed by Approved Document B, with local fire authorities publishing their own supplementary guidance. The route itself is measured on geometry and load, not on what it is surfaced with, which is precisely why a reinforced grass route can satisfy it.
The commonly published figures for a pumping appliance are a minimum road width between kerbs of 3.7m, a minimum gateway width of 3.1m, a turning circle of 16.8m between kerbs or 19.2m between walls, and a minimum clearance height of 3.7m. The route, including any manhole covers, should have a minimum carrying capacity of 12.5 tonnes for a pumping appliance, with higher figures for high reach appliances that vary between authorities.
On positioning, there should be vehicle access for a pumping appliance to within 45m of all points within a dwelling house, with different provisions for flats and other building types. Gradients are also limited: access roads used by fire appliances should be no steeper than 1 in 4.
Two things follow from this. The first is that your build-up has to be designed against a specific carrying capacity, so this is a specification job rather than a landscaping one. The second is that the numbers above are a starting point only: requirements differ by building type, by appliance and by authority, so consult building control and the fire authority early. We can supply technical data for the build-up once you know what the route has to carry.
At a glance
| Sub-base | Designed against the required carrying capacity. Typically 150-250mm open-graded MOT |
| Infill | Sand-dominant rootzone for grass, or a 6-20mm graded blend for gravel sections |
| Typical loading | Pumping and high reach appliances, plus everyday grounds and service vehicles |
| Appearance | Reads as grass. Mowable, and continuous with surrounding landscape |
| Availability | Full strength year-round, including in wet conditions |
| Permeability | Fully permeable. Counts as vegetated surface rather than hard standing |
| Design life | 25 years, subject to documented installation |
| Material | 100% recycled polypropylene, made in the UK |
Which grid depth?
The number on a grid is a decision about how deep the confined layer is, and on an emergency route that decision follows the carrying capacity the drawing calls for.

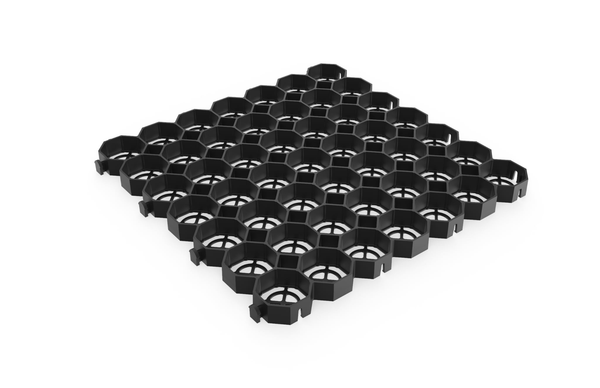

- IBRAN®-X50 is our recommendation for fire appliance routes. Appliance loads are high, the surface has to perform without warning, and grass over a deeper rootzone recovers better between the mowing and service traffic it sees day to day.
- IBRAN®-X40 where a lighter-duty secondary route is specified, or the same surface carries gravel elsewhere on the scheme.
- IBRAN®-X30 where levels are constrained, or excavation depth is limited by services or root protection.
On an emergency route, take the heavier duty option wherever there is a choice. This is a surface whose whole value is that it works the first time it is asked to.
Choosing your fill
For grass, use a sand-dominant rootzone filled level with the cell tops, not topsoil on its own. Topsoil holds water and compacts, and a compacted rootzone gives you weaker grass exactly where the route needs to stay green and identifiable.
Specify a hard-wearing amenity seed mix rather than a fine ornamental one. The route will see mowers, occasional service vehicles and periodic brigade familiarisation visits, and it needs to shrug those off.
Where a section of the route is also a turning head, a hard standing, or a bay used by outriggers, consider a 6-20mm graded gravel blend instead of rootzone for that section. Same grid, same finished level, but a fully stone-filled cell gives a firmer, more predictable surface exactly where the loads are highest.
How it goes in
- Agree the route geometry and required carrying capacity with building control and the fire authority before anything is set out. Everything below follows from that number.
- Set out the route and establish falls, then strip turf and topsoil down to a firm formation, removing soft spots rather than building over them.
- Lay a woven geotextile across the formation, lapping joins by at least 300mm, so the sub-base and the subsoil cannot mix.
- Lay and compact an open-graded sub-base in 50mm layers, to the depth your carrying capacity requires. Compacting the full depth in one pass does not work whatever the machine.
- Blind with a thin levelling layer and screed it flat.
- Push-fit the grids together across the full route width, staggering the joints. Cut around drainage, lighting columns and tree pits with a jigsaw or fine-tooth saw.
- Restrain every open edge along the full length. On a route that reads as lawn, the edge is also what stops vehicles straying off the built-up section.
- Fill the cells: sand-dominant rootzone for grass sections, a 6-20mm graded blend for hard standings and turning areas. Level with the cell tops, brushed in so no cell is left hollow.
- Seed or turf, water in, and keep traffic off while the sward establishes.
Full step-by-step detail is in our grass grid installation guide.
Outriggers and hard standing
This is the detail most often missed, and it is worth designing for explicitly.
A high reach appliance works on jacks, and a jack concentrates an enormous load into a very small footprint. Published guidance for hard standing puts that at a point load of 8.3kg per square centimetre, on a surface as level as possible and no steeper than 1 in 12, which is a completely different design case from a wheel rolling across a route.
Treat any designated hard standing as its own specification rather than as more of the same route. Use the deeper grid, fill those cells with a graded stone blend rather than rootzone, and check the gradient. Grass elsewhere on the route is fine; grass under a jack is not the place to economise.
Keeping the route identifiable
A fire route that nobody can see is a fire route that gets blocked, parked on, or planted over three years after handover.
Because a grass route is deliberately invisible, mark it in a way that survives. Options that work: a contrasting gravel edge strip running the length of the route, markers fixed into the grid at intervals, or bollards and signage at the entry point. Whichever you choose, record it on the site plan and in the building's fire strategy so it is still known about when the people who built it have moved on.
It also needs keeping clear. Skips, deliveries, staff parking and new planting all tend to migrate onto the one part of the site that looks like spare lawn.
Maintenance
Almost none, but it needs to be somebody's job.
Mow it with the surrounding grass; mowers pass straight over because the cell tops sit below the growing crown. Feed and overseed as you would any amenity grass, and check levels after the first winter, brushing any settled cells back up.
Worth adding to the grounds contract explicitly, and worth including in the annual fire strategy review: an inspection walk that confirms the route is clear, unobstructed and still in good condition costs ten minutes and is the difference between a compliant route and a theoretical one.
Get it right first time
The one thing worth knowing: design to the carrying capacity, not to the surface.
It is easy to think of this as a landscaping decision, because the finished result looks like lawn. It is not. The route has a number attached to it, that number came from Approved Document B and your fire authority, and everything from excavation depth to sub-base grade to grid depth follows from it.
Get the specification agreed before the drawings are fixed. Retrofitting a compliant route into a finished landscape scheme costs several times what building it correctly would have, and the conversation with building control is considerably less comfortable.
Ask our engineer
Questions about carrying capacity, sub-base depth, hard standings or meeting a fire authority requirement? Ask below, or get in touch directly.
Common Questions
Can a fire appliance route be grass rather than tarmac?
Yes. Fire service access is assessed on geometry and carrying capacity rather than on what the route is surfaced with, so a reinforced grass route designed to the required capacity can satisfy the requirement while reading as landscape.
Agree the specification with building control and the fire authority before setting out, because the required carrying capacity determines the whole build-up.
What carrying capacity does a fire access route need?
Commonly published guidance gives a minimum carrying capacity of 12.5 tonnes for a pumping appliance route, including manhole covers and similar. Figures for high reach appliances are higher and vary between authorities.
Requirements differ by building type and appliance, so confirm the number with your fire authority and building control rather than assuming.
How wide does a fire appliance access route need to be?
Commonly published figures for a pumping appliance are a minimum road width between kerbs of 3.7m, a minimum gateway width of 3.1m, a turning circle of 16.8m between kerbs or 19.2m between walls, and a minimum clearance height of 3.7m.
High reach appliances need larger turning circles and greater clearance height. Confirm the geometry with your fire authority.
Will a grass fire route work in wet conditions?
That is the main reason to reinforce it. An unreinforced grass route is only usable in dry conditions, and fires do not wait for good weather.
A cellular grid confines the rootzone so it cannot shear into ruts, and the surface stays fully permeable so water drains through rather than standing on top. The route is at full strength year-round.
What about outriggers and jacking points?
Hard standing for a high reach appliance is a different design case from a route. Guidance puts the requirement at a point load of 8.3kg per square centimetre, on a surface as level as possible and no steeper than 1 in 12.
Treat any designated hard standing as its own specification: use the deeper grid and fill those cells with a graded stone blend rather than rootzone.
Which grid depth should a fire access route use?
The 50mm grid is our recommendation for fire appliance routes. Appliance loads are high, the surface has to perform without warning, and grass over a deeper rootzone recovers better from the mowing and service traffic it sees day to day.
Where there is a choice, take the heavier duty option. This is a surface whose whole value is that it works the first time it is asked to.
How do you stop people parking on or blocking a grass fire route?
Mark it in a way that survives handover. A contrasting gravel edge strip along the route, markers fixed into the grid at intervals, or bollards and signage at the entry point all work.
Record the route on the site plan and in the building's fire strategy so it is still known about years later, and include an inspection in the annual fire strategy review.
Can the route be used for anything else day to day?
Yes, and it usually should be. A reinforced grass route can double as lawn, overflow parking, an events area or a service vehicle route, which is what makes it worth building compared with a road that sits unused.
Just keep it unobstructed: anything semi-permanent placed on it, from planters to skips to a bike store, compromises the access it exists to provide.
How steep can a fire access route be?
Guidance limits access roads used by fire appliances to a gradient no steeper than 1 in 4, and hard standings for high reach appliances to no steeper than 1 in 12.
Confined stone and rootzone hold on gradients that loose material washes off, but the gradient limits are about appliance operation rather than surface stability, so they apply regardless of construction.
What maintenance does a grass fire route need?
Mow it with the surrounding grass, feed and overseed as amenity grass, and check levels after the first winter. Mowers pass straight over because the cell tops sit below the growing crown.
The grid itself needs nothing and carries a 25 year warranty subject to documented installation. The important addition is a periodic check that the route is still clear and unobstructed.
