Easy Installation

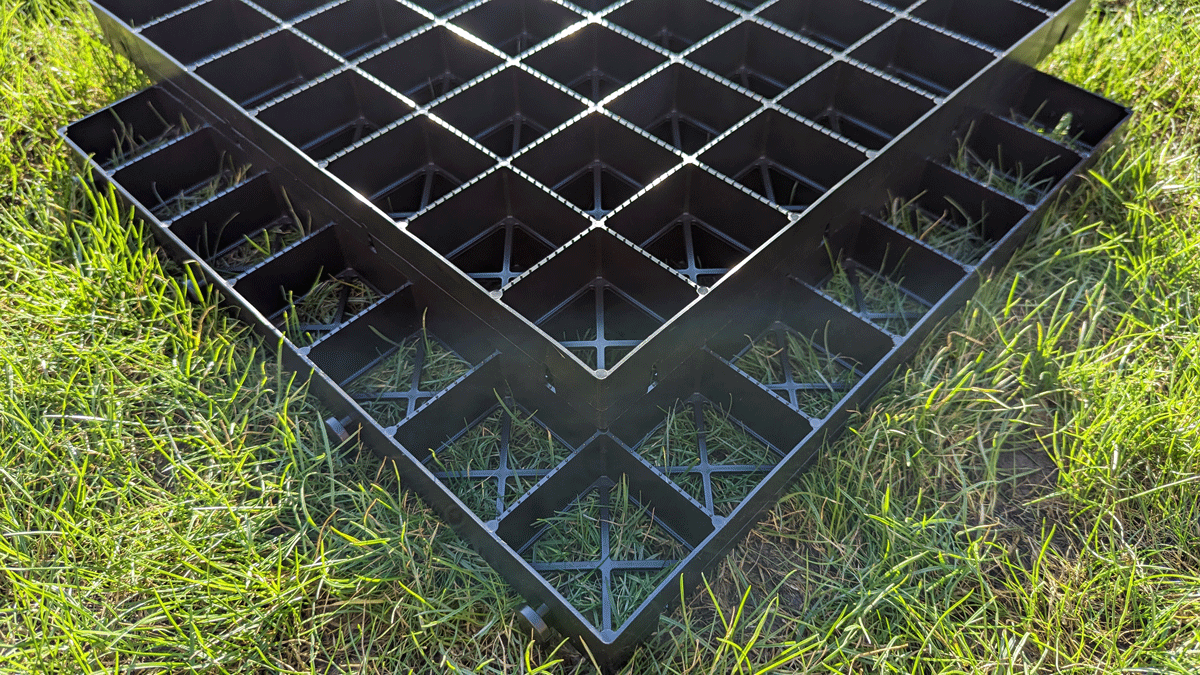

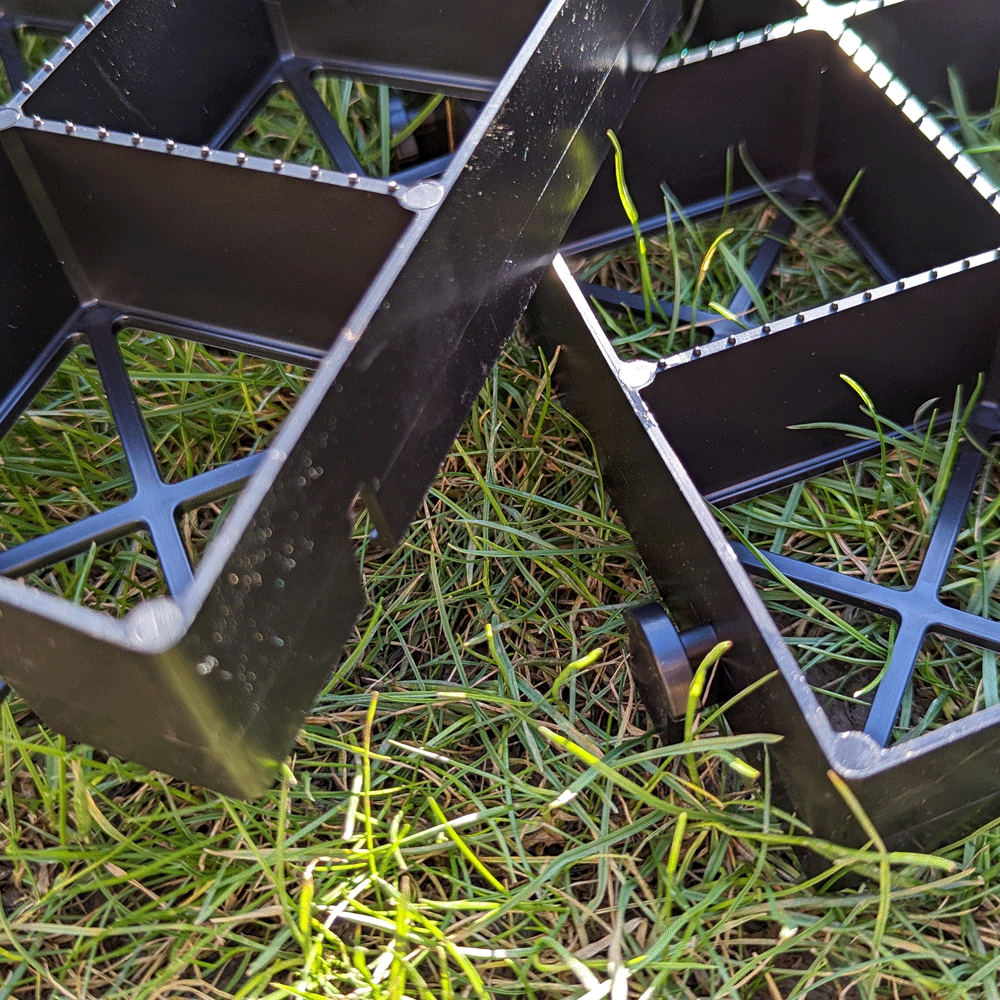

With interlocking clips pre-moulded into all four sides of the grids, you can create natural-looking parking areas in minutes.
First prepare your surface by digging out an area to a 40mm depth, assemble your grids within the hole and simply re-fill with any soil and seed combination that suits you. Alternatively, lay the grass grids directly onto free draining, compacted ground and fill.

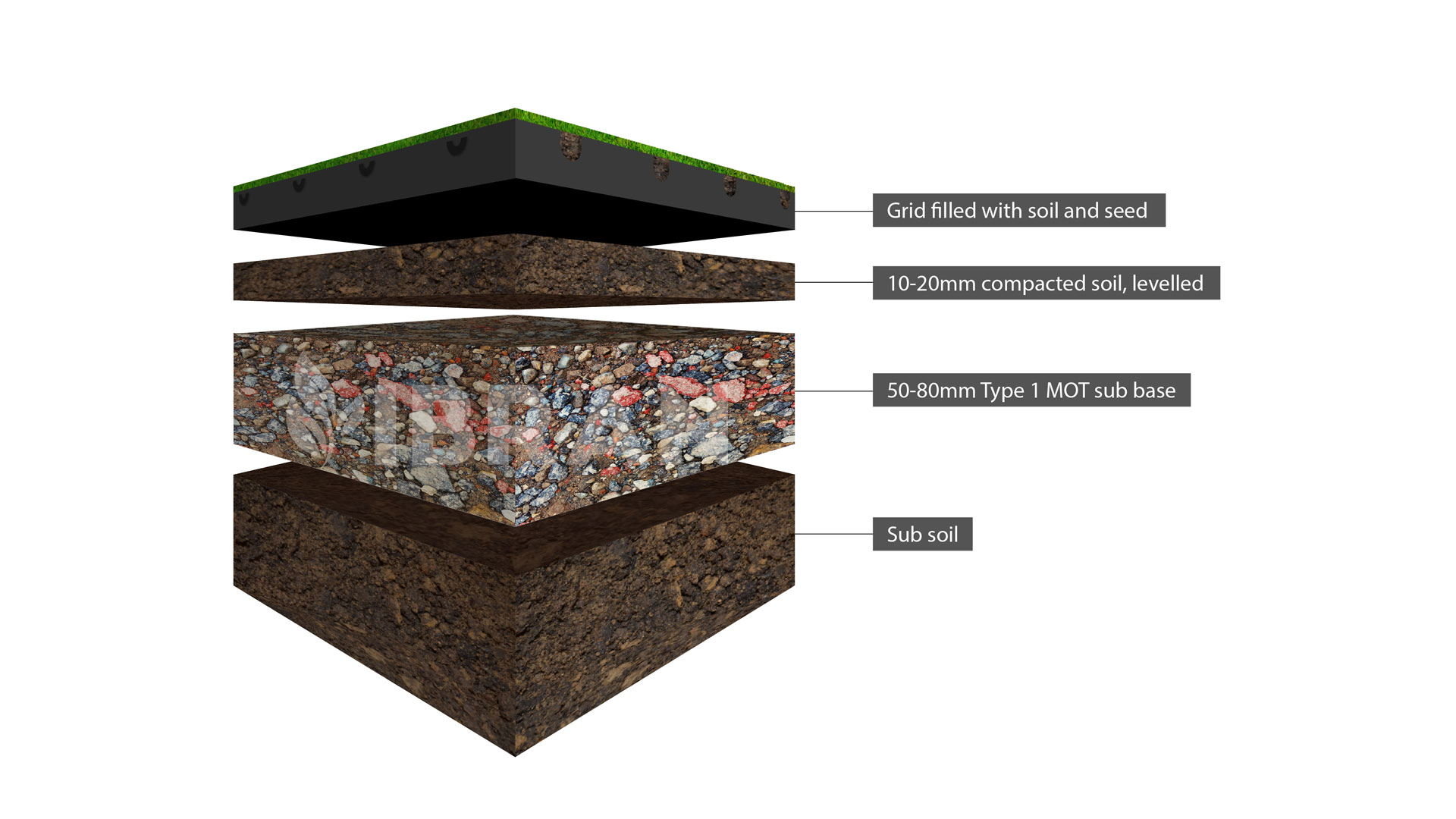

For the very best results, you may want to consider a 50-80mm sub base of type 1 MOT. See below for more details.
All Weather Parking

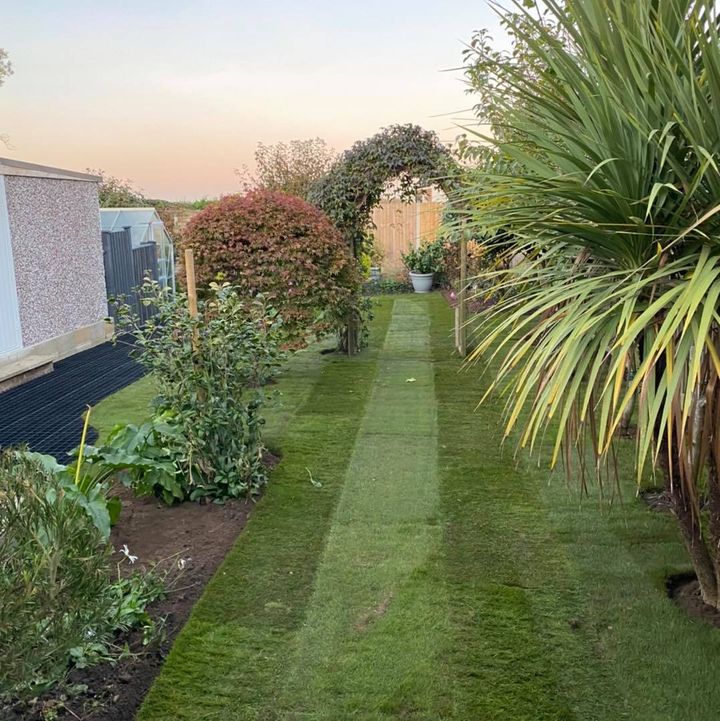

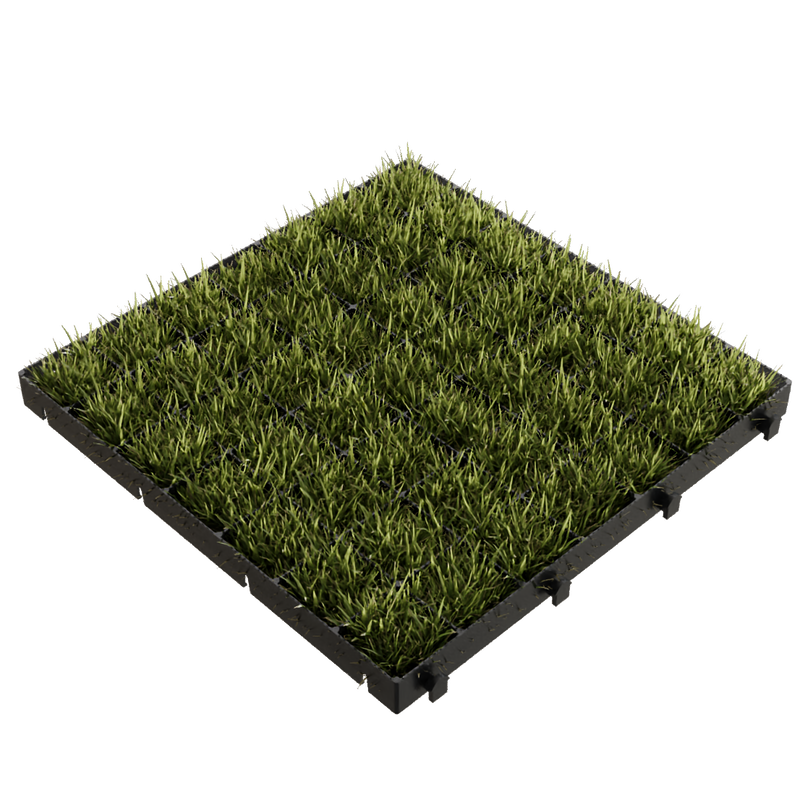

Want a discrete, natural looking parking surface? IBRAN-X grass pavers are virtually invisible when filled with grass.

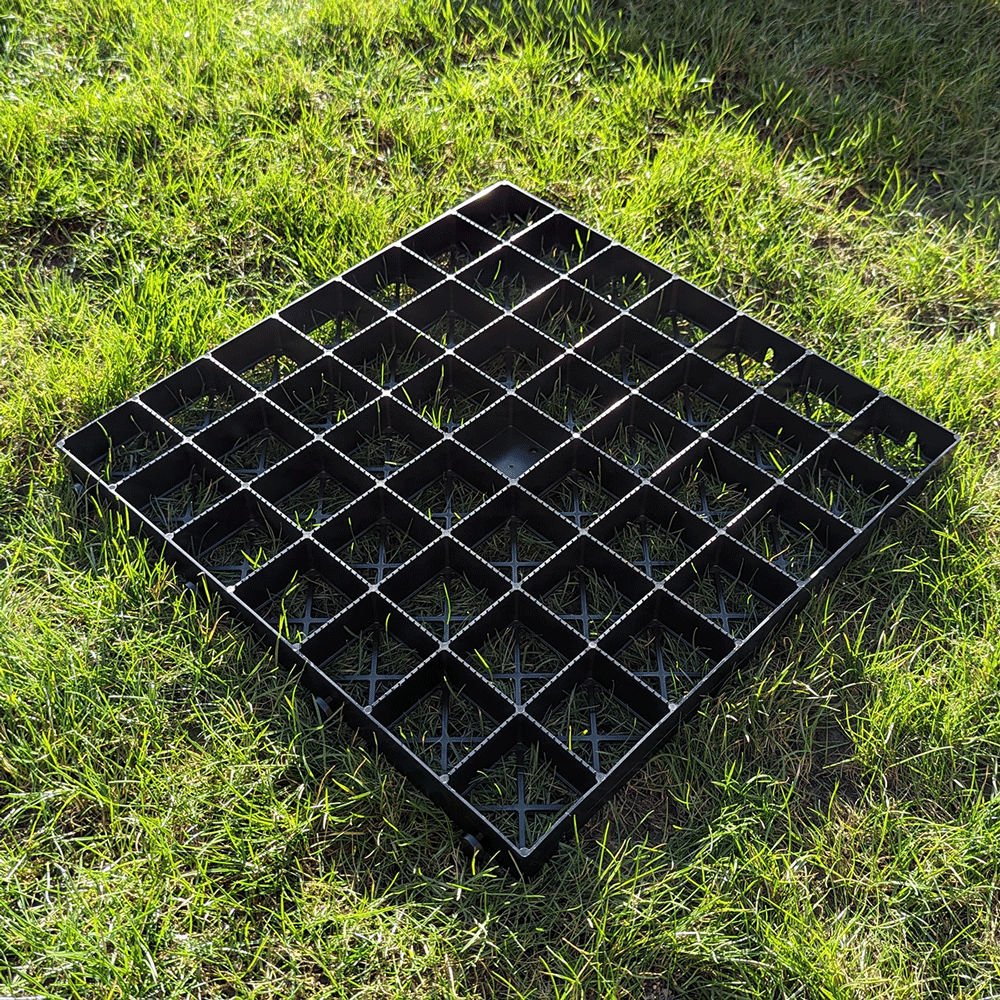

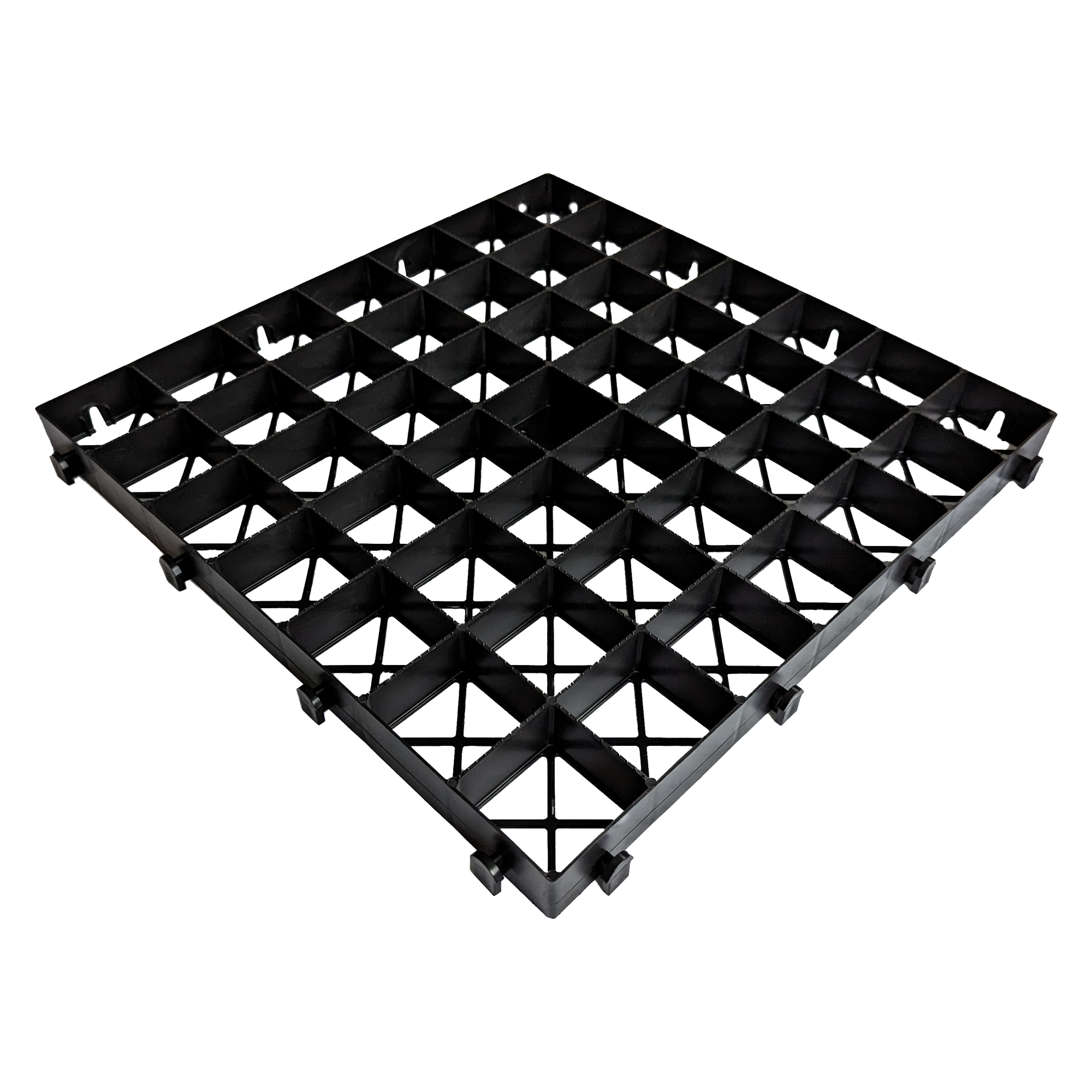

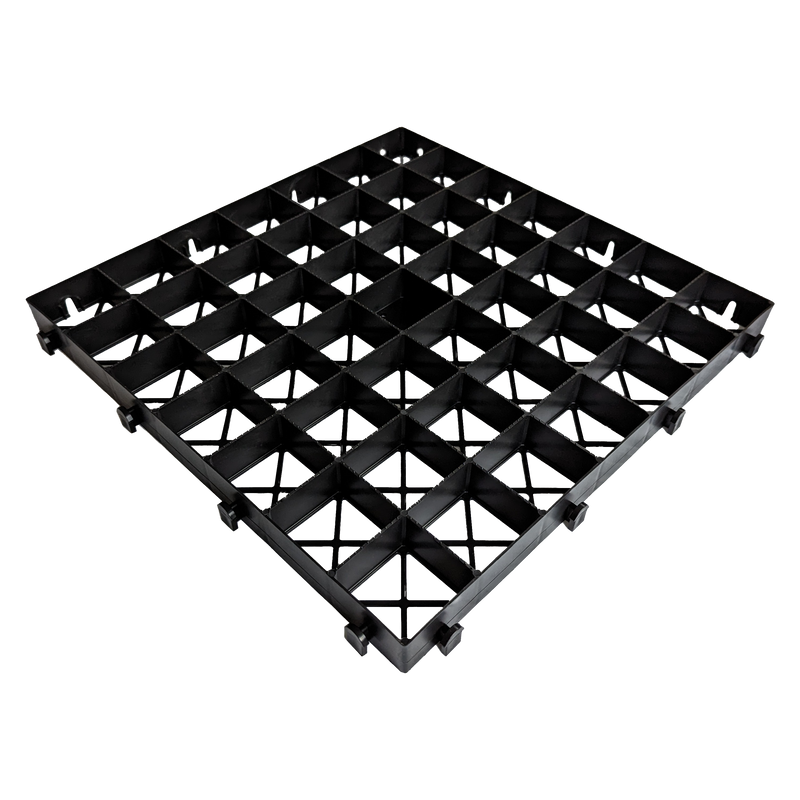

IBRAN-X Grass Grids are designed to reinforce your grass parking space, helping you drive on and off in all weathers, with no wheel spin and no shredded turf.
Specification

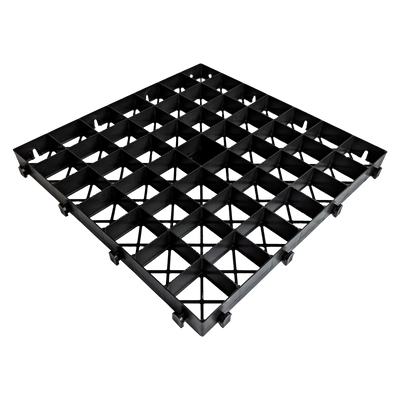

- Dimensions: 500mm x 500mm x 40mm (L x W x H)
- Grid Coverage: 4 grids/m²
- Grid Wall Thickness: 3.5mm
- Cellular Space: 68mm x 68mm squares
- Grid Weight: 0.86kg/grid
- Compression Resistance: 500 tonnes per sqm
- Axle Load Capacity: 25 tonnes
- Material: 100% recycled PP/HDPE
- Temperature Stability: -50 to +90°C
- Recommended Fill: Soil (60/40 sand & topsoil blend) & Seed
- Environmental: None toxic, chemically inert and reusable.
- Tree Safe
- Part M + SuDS compliant
- Colour: Discrete Black (green available on request)
