IBRAN Gravel Grids - the Professionals' Choice.
Access unparalleled load capacity and ease and speed of installation. IBRAN gravel grids are your go-to for driveways, emergency access roads or other reinforced/stabilised gravel surfaces.
Create a neat, robust surface with a gravel stabilisation grid which you can drive any vehicle over. We only use environmentally friendly, 100% recycled plastic (PP+HDPE) to cope with all weather conditions without becoming brittle.
With over 100,000 successful installations and over 10 years of constant improvements, we have refined our gravel retaining grids. In this time, we introduced thick, ribbed, 3.5mm cell walls and a new, X-shaped, reinforced bottom lattice to stop stones migrating downwards. Couple with a roll-out membrane beneath for the most effective anti gravel migration system in the industry.
The result is a uniquely effective gravel reinforcement mesh system that is extremely durable yet simple to set up. Professional tradespeople in the UK and beyond are calling these the "best plastic gravel grids they've ever used".

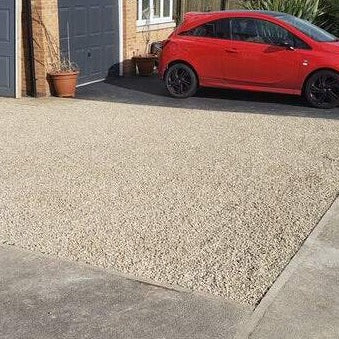

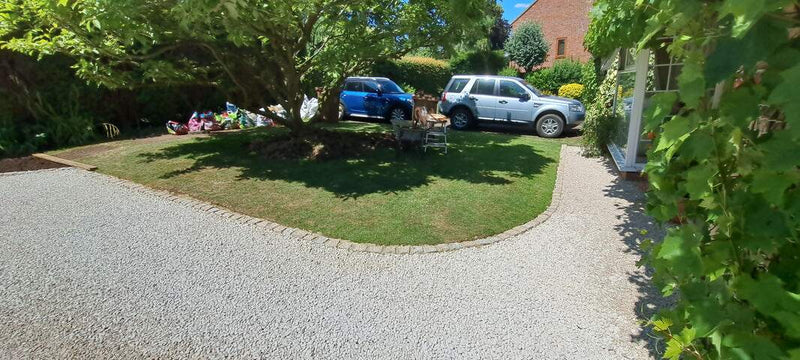

Use for gravel parking areas, our car park/driveway plastic grid system has all the strength of concrete and tarmac (25 tonne axle loads). IBRAN gravel mats improve drainage of your stabilised gravel surface, quickly discharging rainwater to the ground, preventing flooding.
Large enough (4 per square metre) to make installation quick and easy, small enough to avoid excess waste. Our plastic gravel driveway grid system makes permeable surfacing project quick and cost effective. This even makes them highly time, labour and cost effective within more commercial applications. When installed correctly, our gravel grids will stand the test of time.
They are the perfect, eco friendly solution for preventing gravel migration, even on slopes up to 25%!
- Fully permeable, effective water drainage solution (SuDS compliant)
- Covers large areas quickly (500mm x 500mm x 40mm)
- Stabilises 5-35mm angular or decorative gravel.
- Rapid, push-fit, interlocking grids for quick installation.
- High load capacity: suitable for cars, LGVs/HGVs and emergency vehicles (up to 500 tonnes per square metre).
- Made in the UK by IBRAN using high quality, 100% recycled materials.
- UV stable & frost-proof (-50ºC to +90ºC)
- Part M Compliant (wheelchair friendly)
- Suitable for a wide range of light to heavy duty domestic or commercial applications.
- Long term, 25 year warranty (subject to documented installation - see our installation guide)
Full specifications below.

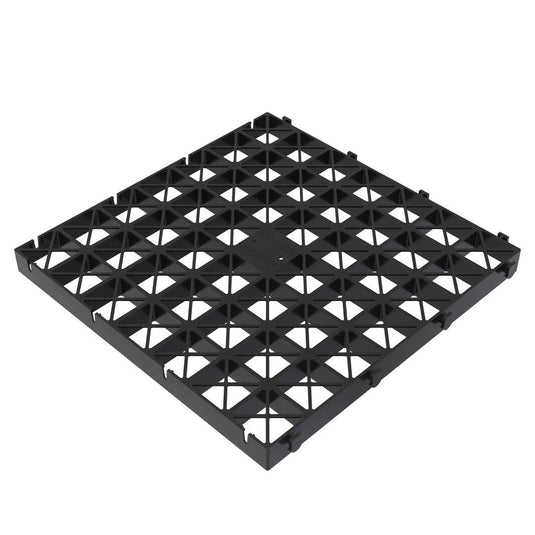

Gravel Grids Specifications
| Dimensions: | 500mm x 500mm x 40mm |
| Grid Coverage: | 4 grids/m2 |
| Ribbed Wall Thickness: | 3.5mm |
| Colour: | Black (others available on request) |
| Cellular Space: | 68mm x 68mm Squares |
| Weight: | 860g/grid |
| Compression Resistance: | 500 tonnes per sqm |
| Axle Load Capacity: | 25 tonnes |
| Material: | 100% recycled PP/HDPE |
| Temperature Stability: | -50ºC to +90ºC |
| Recommended Fill: | 5-35mm Angular/Decorative Gravel |
| Environmental: | None toxic, chemically inert & reusable |
| Slope Tolerance: | 25% / 15º |
| Compliance: | SuDS & Part M Compliant |
| Nature: | Tree Safe |
Customer Reviews
Very easy to lay and provide a stable base.
Great next day delivery by DPD on both orders placed.
Also good to support a local business.
Really nice product, very reasonable price and well made, my only criticism and it probably doesn’t apply to many people’s uses, the clip system is not designed to pattern, I only wanted to widen my drive by roughly 2 and a half grids thinking I could use the half off cut to start the next row, when in fact you cannot do this, the grids have to be placed squarely in line with the previous row, if you could ‘brick bond’ these or similar to engineered flooring where the off cut can be used for the next row, this would have been a fantastic product, as it happened I ended up using the offcuts to save so much waste and having to order an extra 5 tiles but it meant cutting my own slots to connect them which obviously isn’t great! If these were re-designed with the logs in a repeatable patter meaning you can start a row with half’s it would be fantastic and I imagine a stronger join overall.
As an allotment holder we need to use nob permanent solutions, I ran gravel grids have been great for a shed base, a parking area for my trailer and most recently for a greenhouse base. Compacted level soil, weed suppression material then gravel boards, filled with gravel, boards are easily connected and cut if needed. They have been easy to order and are cost effective. Delivery was DPD and was prompt on the right day as request. Would recommend to others. Will order more for some path ways.
Gravel Grids
Great product so far.
Easy to put together 50sq took 40 mins .
Just remember put them all in the correct way.!
But was disappointed with a days delay in delivery without any warning!
IBRAN-X gravel grids stabilise gravel on any site.
IBRAN-X is the most versatile, heavy duty, plastic gravel grid system. Free draining and having incredibly high load capacity (500 tonnes/square metre), they are strong enough for any low cost gravel driveway, footpath, access road or commercial and industrial car parking.
Incredible load capacity - up to 500 tonnes per square metre!
At 500mm x 500mm x 40mm, you can quickly assemble up to 360m2 per hour, with minimal waste and minimal effort. The lightweight (860g per tile) but ultra heavy duty (500T/m2 load capacity) grid structure is fortified with UV stabilisers and an impact modifier which makes the grids unbelievably durable. And what's more, they're sustainably made, right here in the UK, from recycled plastic!
Careful design tailored for the trade.
We have continuously improved our gravel grid system over the past 10 years, refining the design based on feedback from the trade. During this time, we've supported over 100,000 projects with IBRAN-X. The trade love IBRAN-X for:
- Rapid installation - quickly cover large areas with less waste from cuts.
- Interlocking - making it strong for vehicular use, even on slopes.

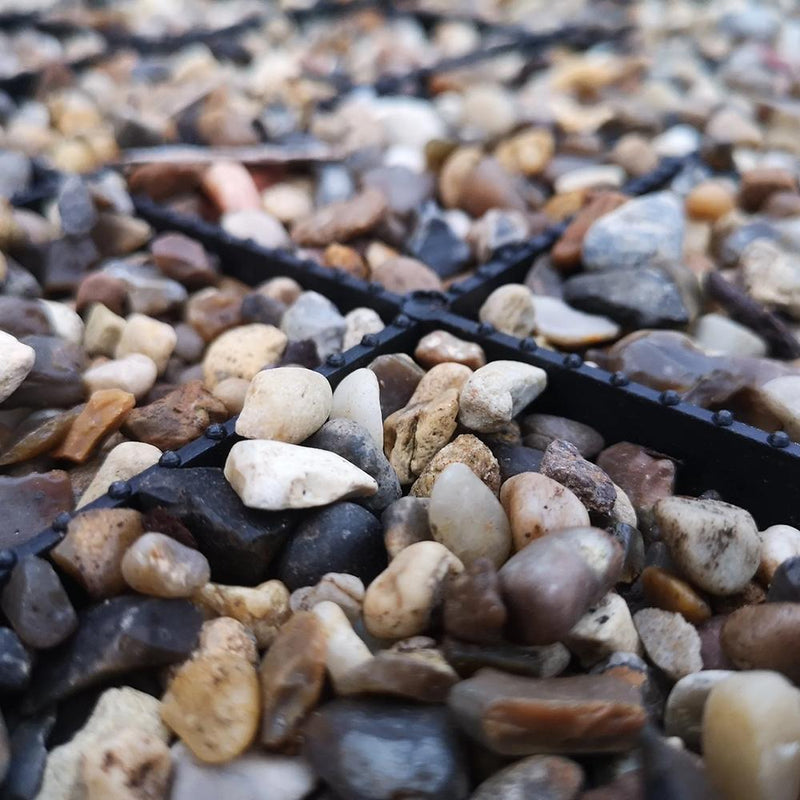

- X shaped mesh - stops the stone from escaping beneath and forcing the grids upwards.
- Impact modified - our blend of plastic contains an additive which prevents shattering.
Install on any site to create wheelchair friendly parking areas, heavy duty access roads, gravel driveways and footpaths. IBRAN gravel parking grids make creating the perfect driveway quick and easy. You can fill IBRAN-X grids with any rough or smooth 5-35mm gravel or stone and it will bed into the cells of the gravel grids perfectly.
Made sustainably, with recycled plastics.
Surpassing industry standards and designed with the trade in mind, the IBRAN-X design incorporates all the features our customers have requested. As a sustainable manufacturer, our aim is to produce products that perform to the highest of standards because products that aren't up to the job, aren't sustainable.
And in line with our business goals of sustainability, the grids are the perfect size to be quick to install, without the need for large, wasteful offcuts. This saves you money and saves the environment!
Premium quality for low cost.
We are one of the few true gravel grid manufacturers in the UK. We do not import any of our products, including our gravel stabilisation grids. Every single heavy duty gravel grid is made in-house and shipped directly from our factory within 24 hours of passing our quality checks.
Removing layers of unnecessary handling is how we are able to provide premium quality gravel grids at a fantastic price.
Install IBRAN gravel parking grids anywhere for enduring quality.
Thousands of successful projects to date.
We could give you hundreds of reasons to buy from IBRAN but we believe that our customers' opinions could tell you more than we ever could.
With over 10 years of experience and 100,000+ successful projects, we're confident you'll love working with us.
Don't just take our word for it though. Read what our customers have to say.
What is IBRAN-X?
IBRAN-X is a high-strength permeable paving grid system designed for gravel retention and ground reinforcement. Made from PP (polypropylene) and HDPE (high-density polyethylene), it creates stable, permeable surfaces for driveways, parking areas, and many other applications.

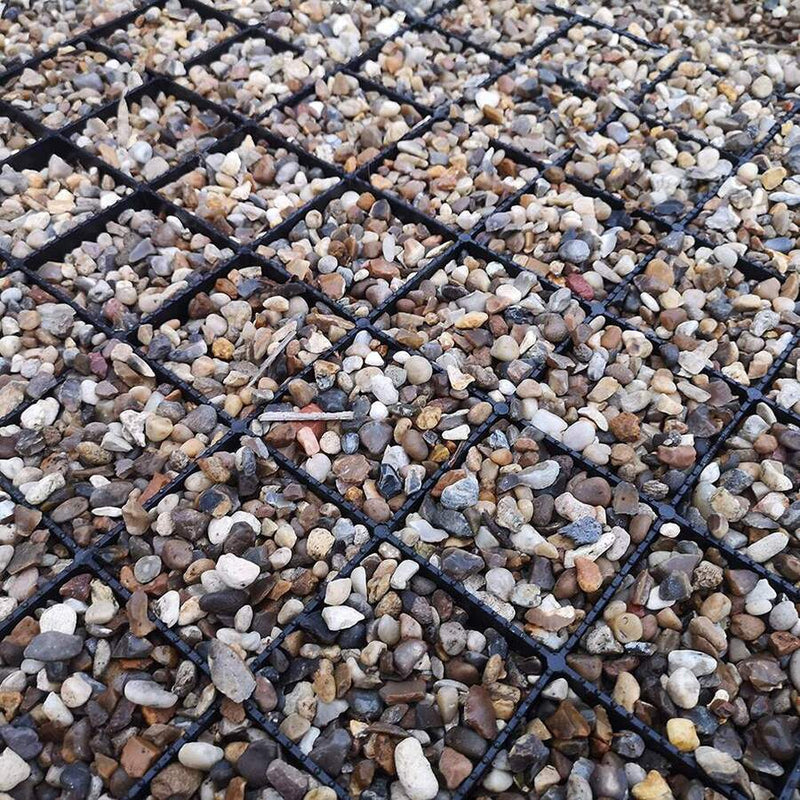

The unique cell design prevents gravel migration while allowing natural drainage.
What are the benefits of using IBRAN-X?
IBRAN-X gravel grids offer multiple benefits:
- Exceptional strength (tested to 500 tonnes per square metre)
- 100% permeability for SuDS compliance
- Minimal maintenance requirements
- Rapid installation using our interlocking system
- UV stability to prevent degradation
- Eco-friendly construction using recycled materials
- Prevents gravel migration
- Eliminates rutting
- Creates wheelchair-friendly surfaces when properly installed
What vehicles can drive on IBRAN-X Gravel Grids?
IBRAN-X has been independently tested to withstand loads of up to 500 tonnes per square metre, making it suitable for everything from domestic vehicles to heavy goods vehicles.
This makes it ideal for:
- Residential driveways
- Commercial parking lots
- Emergency access routes
- Industrial applications
What kind of stone should be used with IBRAN-X?
For optimal performance, we recommend using 20mm angular gravel with IBRAN-X grids. However, the system can accommodate aggregates between 5mm and 30mm.
Angular gravel is preferred over rounded as it locks together better, creating a more stable surface.
For driveways specifically, 20mm angular gravel provides the best balance of stability and drainage while being less likely to get caught in tire treads.
How are IBRAN-X grids installed?
Installation follows these key steps:
- Excavate to the required depth (typically 150-300mm depending on application)
- Install a geotextile membrane to prevent upward migration of sub-base materials
- Add and compact Type 1 or Type 3 sub-base to the required depth
- Add a thin laying course of 10-20mm sharp sand or granite dust
- Lay IBRAN-X grids, connecting them using the interlocking system
- Fill with chosen aggregate
For detailed instructions, please consult our installation guide.
Is there a guarantee with IBRAN-X?
Yes - provided you can provide evidence of having followed our installation guide, then we offer a 15 year guarantee.
Is IBRAN-X Gravel Grids SuDS Compliant?
Our gravel grids are 100% permeable, making them one of the best Sustainable Urban Drainage Solutions.
Is IBRAN-X Wheelchair Friendly?
In the UK, there are no documents or set standards for approval of our system except for the government's own guidance, known as Part M.
To be part M compliant, the surfacing choice needs to demonstrably smooth enough to allow a wheelchair user to manoeuvre their wheelchair, whilst supporting their weight.
Using IBRAN gravel grids is the only way to make a gravel surface suitable wheelchair friendly.
This video demonstrates the ease of wheelchair use: demonstration video.
Is IBRAN ISO-9001 certified?
Yes, ISO-9001 is just one of the many certifications we are proud to carry as a manufacturer.
What are gravel stabilisation grids?
Gravel stabilisation grids are a type of ground reinforcement system made from PP (polypropylene) and HDPE (high-density polyethylene). They are used to create a stable, permeable, and aesthetically pleasing surface for a variety of applications, including driveways, walkways, and landscaping.
The grids are made up of a series of interlocking cells that hold the gravel in place, preventing it from shifting and moving underfoot.
What are the benefits of using gravel stabilisation grids?
There are many benefits to using gravel stabilisation grids, including:
- Stability: By preventing the gravel from spreading, they ensure a consistently stable and level surface
- Permeability: By allowing the passage of water, they reduce runoff, which reduces flooding in built-up areas by allowing for natural drainage
- Durability: The combination of PP and HDPE materials creates a robust system that is resistant to rot, decay, and pests
- Aesthetics: Gravel stabilisation grids can be used to create a variety of different patterns and designs
- Low maintenance: Once installed, gravel stabilisation grids require very little maintenance
Can I use gravel stabilisation grids on all types of ground?
Gravel stabilisation grids can be used on a variety of different ground types, including clay, sand, and gravel. However, it is crucial to ensure that the ground is properly prepared with a stable, compacted sub-base before installation. This foundation work is essential for the long-term performance of the system.
How long do gravel stabilisation grids last?
Gravel stabilisation grids made from PP and HDPE materials are extremely durable and can last for many years. However, the lifespan of the grid will depend on:
- The specific application
- The quality of installation and sub-base preparation
- The amount of traffic it receives
Do I need planning permission to install gravel stabilisation grids?
In most cases, you will not need planning permission to install gravel stabilisation grids. However, it is always best to check with your local planning authority to be sure.
How much do gravel stabilisation grids cost?
The cost of gravel stabilisation grids will vary depending on the size of the area you need to cover and the specific type of grid you choose. However, they are generally a cost-effective solution for creating a stable and durable gravel surface.
Additional Applications & Suggested Uses
Our versatile product can support a much wider range of applications.
Eco-friendly, sustainable grass and gravel paving and structural support solutions.
- Ground stability grids installed at ground level to prevent soil disruption from vehicle and foot traffic.
- Access roads and emergency service lanes (e.g., fire and ambulance routes)
- Driveway grids and gravel parking
- Grass or gravel car parks, including temporary and permanent overflow parking Reinforcement for residential driveways, lawns, and gravel parking
- Surface drainage solutions for stormwater management and flood control
- Safe water runoff solutions and French drains Stability for railway embankments
- Slope and embankment reinforcement
- Drainage and melioration ditches
- Use for horse paddocks, ménages, and arenas
- Buggy paths and disability access routes
- Golf course pathways and grass stabilisation
- School play areas and access routes
- Flooring for events and marquees
- Lawn protection for sloped gardens
Trusted by Industry Leaders
Join IBRAN TradeHub
- 🔧 Locked-in trade pricing.
- 🔧 Approved Installer status.
- 🔧 Free site measurement and estimator app.
- 🔧 Free marketing and promotion.
- 🔧 Your own dedicated account manager.
Eco-friendly Solutions
Not only are IBRAN gravel grids easy to install and versatile, but they also have environmental benefits. Our plastic gravel grids are 100% recycled and made in the UK, lowering our carbon footprint in manufacturing and transport.
Here are just a few other benefits:
Erosion Control: By stabilising the soil, driveway gravel grids help prevent erosion caused by heavy rains, protecting surrounding vegetation and landscapes.
Stormwater Management: Gravel grids allow rainwater to permeate through the surface. This can help prevent flooding and erosion.
Reduce Surface Heat: Unlike traditional pavement, gravel grids can help lower surface temperatures, creating cooler environments.

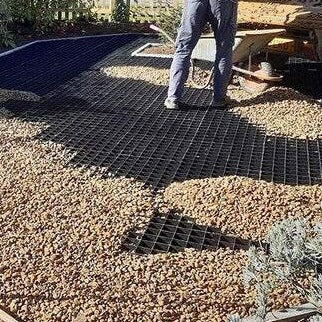

Easy Installation
IBRAN gravel grids are easy to install.The porous layers seamlessly interlock to hold all kinds of stone (10 - 30mm). Pave across on any smooth surface, even at a 25% gradient!
- Place the grids on a Type 1, 2, or 3 MOT sub-base or any well-compacted, smooth surface.
- Blind the sub base with a screed layer of sharp sand, covered with permeable membrane.
- Interlock the grids and fill them with bulk bags of stone.
This combination will keep both the grids and gravel in place, creating a solid, rut-free surface for driving.
Expect your new plastic gravel grids to last over 25 years, with minimal maintenance.
High-Quality Gravel Grids
If you're going to spend time and money doing something and you're staking your good name against it, you want to be sure the materials you're using are as good as your reputation.
That's why the IBRAN Gravel Grid is the best in class, drawing on years of trade experience and feedback from tradespeople to create an industry leading design that's:
- Made from 100% recycled, heavy duty, impact modified polypropylene to stop cracking and breakage.
- Incorporates an X shape mesh that forms a solid, impenetrable tray for the stone to sit in. This prevents uplift and damage by stopping stone moving underneath.
- Interlocking grids that connect by pushing down from above. This means you can lay hundreds of square metres per hour.
- Compatible with other IBRAN products (edging, etc.) designed to enable works to commence.
We're here to support you with exceptionally high standards that match your standards.
You'll be proud to put your name on it.
