Pre-order your heavy duty car park grids today.
IBRAN-O is due to be launched in July 2025.

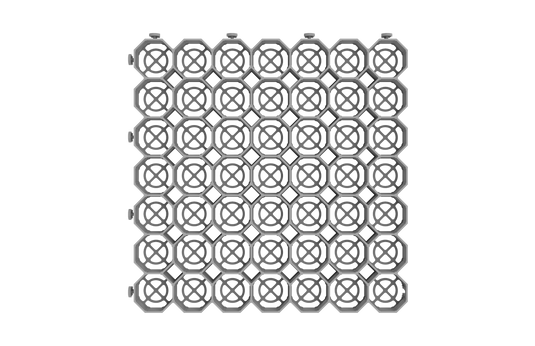

Heavy Duty Car Park Grids Specifications
| Dimensions: | 500mm x 500mm x 30mm |
| Grid Coverage: | 4 grids/m2 |
| Ribbed Wall Thickness: | 4mm |
| Colour: | Black, Grey (others available on request) |
| Cellular Space: | 68mm x 68mm Squares |
| Weight: | 860g/grid |
| Compression Resistance: | 650 tonnes per sqm |
| Axle Load Capacity: | 40 tonnes |
| Material: | 100% recycled PP/HDPE |
| Temperature Stability: | -50ºC to +90ºC |
| Recommended Fill: | 5-25mm Angular/Decorative Gravel |
| Environmental: | None toxic, chemically inert & reusable |
| Slope Tolerance: | 25% / 15º |
| Compliance: | SuDS & Part M Compliant |
| Nature: | Tree Safe |
IBRAN-O car parking grids stabilise gravel on any site.
IBRAN-O is the most versatile, heavy duty, plastic car parking grid system. Free draining and having incredibly high load capacity (650 tonnes/square metre), they are strong enough for any low cost, commercial or industrial car park or access road.
Incredible load capacity - up to 650 tonnes per square metre!
At 500mm x 500mm x 30mm, you can quickly assemble up to 360m2 per hour, with minimal waste and minimal effort. The lightweight (860g per tile) but ultra heavy duty (650T/m2 load capacity) grid structure is fortified with UV stabilisers and an impact modifier which makes the grids unbelievably durable. And what's more, they're sustainably made, right here in the UK, from recycled plastic!
Careful design tailored for the trade.
We have continuously improved our gravel grid system over the past 10 years, refining the design based on feedback from the trade. During this time, we've supported over 100,000 projects with IBRAN-O. The trade love IBRAN-O for:
- Rapid installation - quickly cover large areas with less waste from cuts.
- Interlocking - making it strong for vehicular use, even on slopes.
- Ringed, X shaped mesh - stops the stone from escaping beneath and forcing the grids upwards.
- Impact modified - our blend of plastic contains an additive which prevents shattering.
Install on any site to create wheelchair friendly parking areas, heavy duty access roads, gravel driveways and footpaths. IBRAN gravel parking grids make creating the perfect driveway quick and easy. You can fill IBRAN-O grids with any rough or smooth 5-20mm gravel or stone and it will bed into the cells of the gravel grids perfectly.
Made sustainably, with recycled plastics.
Surpassing industry standards and designed with the trade in mind, the IBRAN-X design incorporates all the features our customers have requested. As a sustainable manufacturer, our aim is to produce products that perform to the highest of standards because products that aren't up to the job, aren't sustainable.
And in line with our business goals of sustainability, the grids are the perfect size to be quick to install, without the need for large, wasteful offcuts. This saves you money and saves the environment!
Premium quality for low cost.
We are one of the few true car parking gravel grid manufacturers in the UK. We do not import any of our products, including our gravel stabilisation grids. Every single heavy duty gravel grid is made in-house and shipped directly from our factory within 24 hours of passing our quality checks.
Removing layers of unnecessary handling is how we are able to provide premium quality gravel grids at a fantastic price.
Install IBRAN gravel parking grids anywhere for enduring quality.
Thousands of successful projects to date.
We could give you hundreds of reasons to buy from IBRAN but we believe that our customers' opinions could tell you more than we ever could.
With over 10 years of experience and 100,000+ successful projects, we're confident you'll love working with us.
Don't just take our word for it though. Read what our customers have to say.
Trusted by Industry Leaders
High-Quality Car Parking Grids
If you're going to spend time and money doing something and you're staking your good name against it, you want to be sure the materials you're using are as good as your reputation.
That's why the IBRAN Car Parking Grid is the best in class, drawing on years of trade experience and feedback from tradespeople to create an industry leading design that's:
- Made from 100% recycled, heavy duty, impact modified polypropylene to stop cracking and breakage.
- Incorporates a cross-hair shaped mesh that forms a solid, impenetrable tray for the stone to sit in. This prevents uplift and damage by stopping stone moving underneath.
- Interlocking grids that connect by pushing down from above. This means you can lay hundreds of square metres per hour.
- Compatible with other IBRAN products (edging, etc.) designed to enable works to commence.
We're here to support you with exceptionally high standards that match your standards.
You'll be proud to put your name on it.
Easy Installation
IBRAN car parking grids are easy to install.The porous layers seamlessly interlock to hold all kinds of stone (10 - 30mm). Pave across on any smooth surface, even at a 25% gradient!
- Place the grids on a Type 1, 2, or 3 MOT sub-base or any well-compacted, smooth surface.
- Blind the sub base with a screed layer of sharp sand, covered with permeable membrane.
- Interlock the grids and fill them with bulk bags of stone.
This combination will keep both the grids and gravel in place, creating a solid, rut-free surface for driving.
Expect your new plastic gravel grids to last over 25 years, with minimal maintenance.

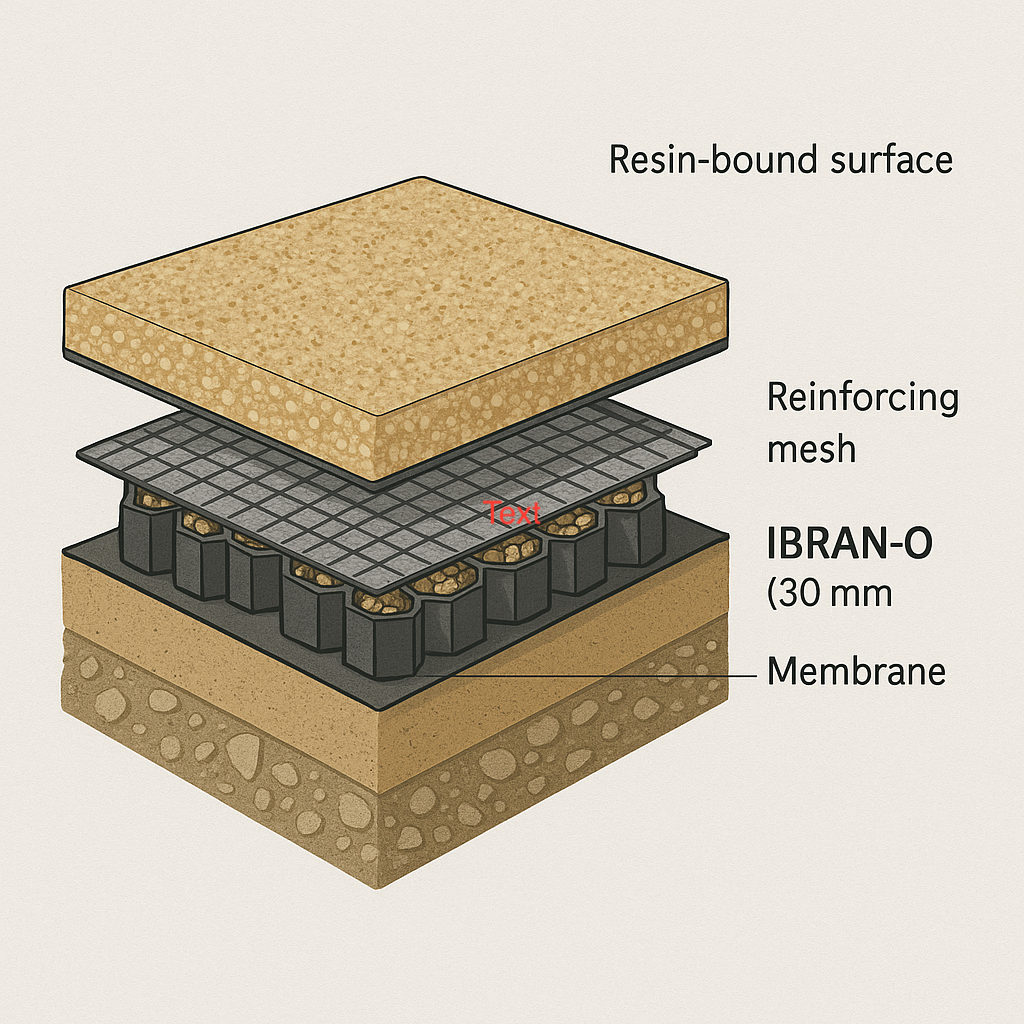

Perfect for Permeable Resin-Bound Surfacing
IBRAN-O is purpose-built to deliver exceptional support for resin-bound surfaces.
Unlike traditional installations that rely on impermeable concrete or tarmac bases, IBRAN-O grids are laid over a Type 3 MOT sub-base. This creates a strong yet fully permeable foundation, preventing water build-up beneath the surface—and protecting your resin-bound finish from long-term damage.
